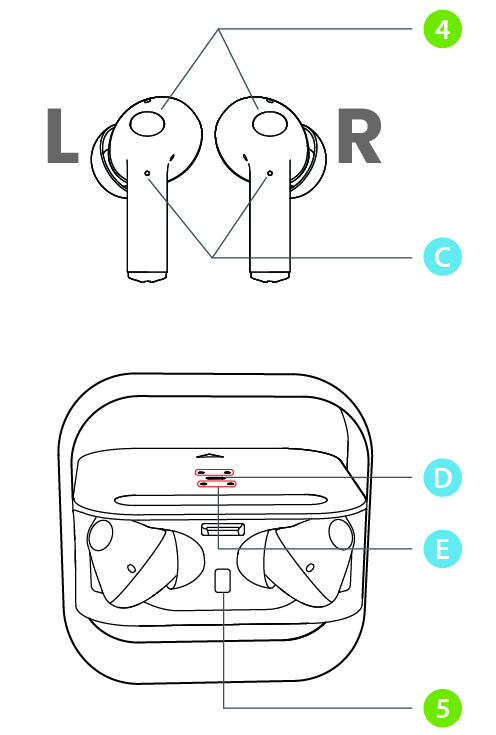

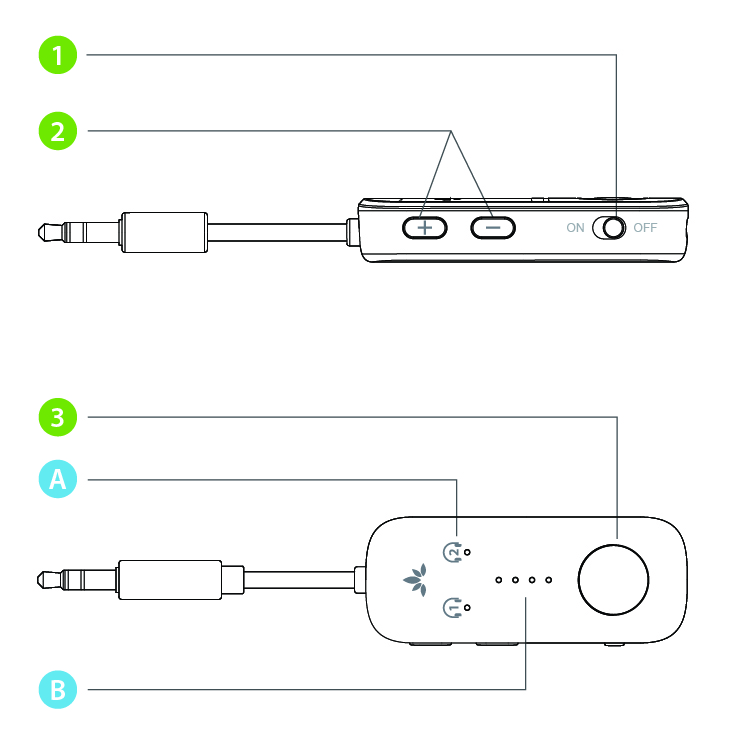

Product overview of transmitter: Product overview of earbuds:
LED Indicators
| LED | NO. | Status | Function |
| Transmitter LED | Solid Blue | Connected | |
| Slow Blue Flash | Reconnecting | ||
| Fast Red & Blue Flash | Pairing mode | ||
| 4 Vertical LEDs | Battery level indicator | ||
| Earbud LEDs | Slow Blue Flash (Both Sides) | Pairing (Left-Right) | |
| No LED | Connected to source | ||
| One Side Fast Red & Blue Flash | Low battery | ||
| Earbud Case LED |
Middle LED light up red for 2 Sec | Low battery | |
| Middle LED solid red | Case charging | ||
| Middle LED solid white | Case fully charged | ||
| 4 Small White LEDs Light Up for 2 Sec | Earbuds charging |
Buttons & Functions
Transmitter Buttons
| No. | Button | Action | Function |
| ON/OFF Switch | Toggle ON/OFF | Power on/off | |
| Volume Buttons | Press once or hold | Adjust volume up/down | |
| Press & hold both (6 sec) | Clear pairing history | ||
| MFB (Multifunctional Button) | Press & hold (2 sec) | Enter pairing mode | |
| Press once | Reconnect to last device | ||
| Double-click | Show battery level |
Earbud Controls (Metal Part as Button)
| NO. | Button | Action | Function |
| Right Earbud | Click | Volume up | |
| Left Earbud | Click | Volume down | |
| Either Earbud | Press & hold (2 sec) | Switch between Ambience Mode, Noise Cancelling, and Normal Mode. | |
| Double-click | Next/previous track |
Earbud Case Buttons
| NO. | Button | Action | Function |
| Left & Right Button | Press once | Pair/reconnect earbuds | |
| Press & hold (8 sec) | Reset earbuds |
