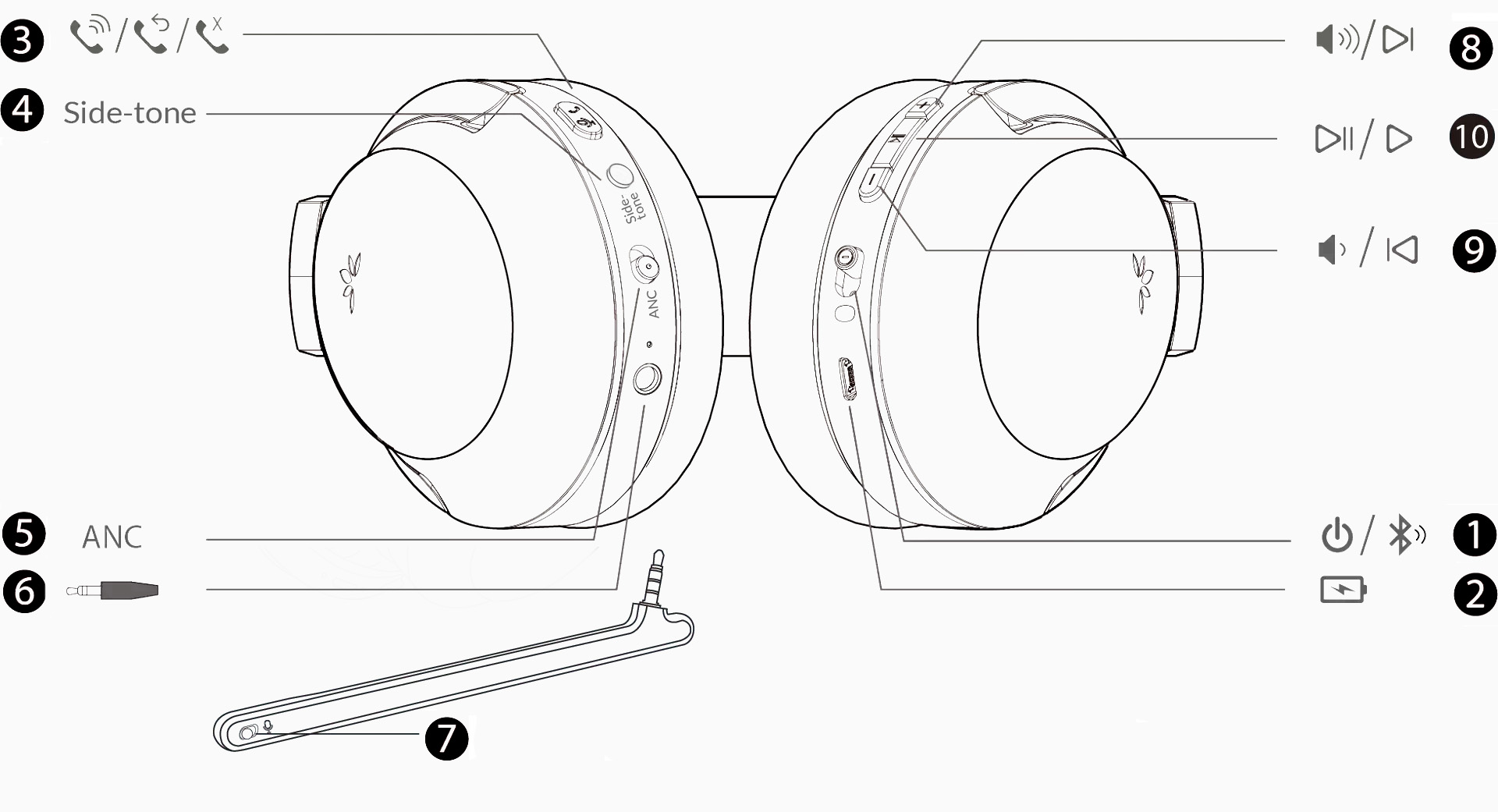

❶Power Switch ❻Audio Port
❷Charging Port ❼Boom Mic Mute Switch
❸Phone Button ❽Volume Up / Next Song
❹Side-tone Button ❾Volume Down / Previous Song
❺ANC Button ❿Play/Pause Button
Headphones Function Table:
| Function | Headphone Status | Action | LED Indicator | Voice Prompt |
| Power on | OFF | Slide the Power Switch ❶ to ON | Flashing BLUE once every 2s | Welcome to Avantree |
| Power off | ON | Slide the Power Switch ❶ to OFF | RED light is on for 1s | Goodbye |
| Pairing | Power on/off (Not for the first time) | Hold the Power Switch ❶ to PAIR for 4s | RED and BLUE lights flash alternately | Pairing |
| Re-connect | Standby | Slide the Power Switch ❶ to PAIR | Flashing BLUE once every 1s |
Long beep |
| Answer a call | With an incoming call | Click the Phone Button ❸ once | Flashing BLUE | Short beep |
| End a call | During a call | Click the Phone Button ❸ once | Flashing BLUE | Long beep |
| Increase Volume | Streaming Audio | Click the Volume Button ❽ | / | / |
| Decrease Volume | Streaming Audio | Click the Volume Button ❾ | / | / |
| Previous track | Streaming Audio | Click the Volume Button ❾ | / | / |
| Next track | Streaming Audio | Click the Volume Button ❽ | / | / |
| Play/Pause | Streaming Audio | Click Play Button ❿ once | / | / |
| Turn ON/OFF Side Tone | Talking | Press and hold Microphone Button ❹ for 3 seconds | WHITE LED lights on 5 seconds | Beep twice |
| Turn Mixer On/Off | Streaming Audio | Press and hold Volume Up Button ❽ + Play/Pause Button ❿ for 3s | BLUE LED lights on 5 seconds | Mono mode |
| Reject a Call | Incoming call | Press and hold Phone Button ❸ for 2s | / | Beep once |
| Clear Pairing History | ON | Press and hold both❽+❾ for 5s | turns PINK | Beep twice |
| Turn Off Voice Prompt | ON | Press and hold Side-tone Button ❹ and Volume Down Button ❾ for 1s | RED LED lights on 2s | Voice prompt off |
| Turn On Voice Prompt | ON | Press and hold Microphone Button ❹ and Volume Up Button ❽ for 1s | / | Voice prompt on |
| MIC Mute Off | ON/OFF | Slide Mute Switch❼ to no red dot | / | / |
| MIC Mute On | ON/OFF | Slide Mute Switch❼ to red dot | / | / |
| ANC On/Off | ON | Switch ANC Button ❺ on | Solid GREEN | / |
| Charging | ON/OFF | Put headphones on charging stand or charge via USB C | Solid RED while charging, RED light off once charging is complete | / |
| DFU mode | OFF | Press and hold both❽+❾ for 7s | Solid RED | / |
LED Indicator Table:
| LED Indicator Table | LED Pattern | Status |
| ANC Indicator | Solid GREEN | ANC ON |
| Headphones Indicator | BLUE & RED alternately | Pairing Mode |
| BLUE once every 5s | Connected | |
| BLUE once every 1s | Reconnecting | |
| BLUE once every 2s | Disconnected | |
| RED once every 10s | Low battery | |
| BLUE once every 5s | Play audio in SBC Codec | |
| BLUE on | Play audio in FS Codec | |
| WHITE once every 5s | Play audio in AptX Codec | |
| WHITE twice every 5s | Play audio in AptX-LL Codec | |
| WHITE 3 times every 5s | Play audio in AptX-HD Codec |
